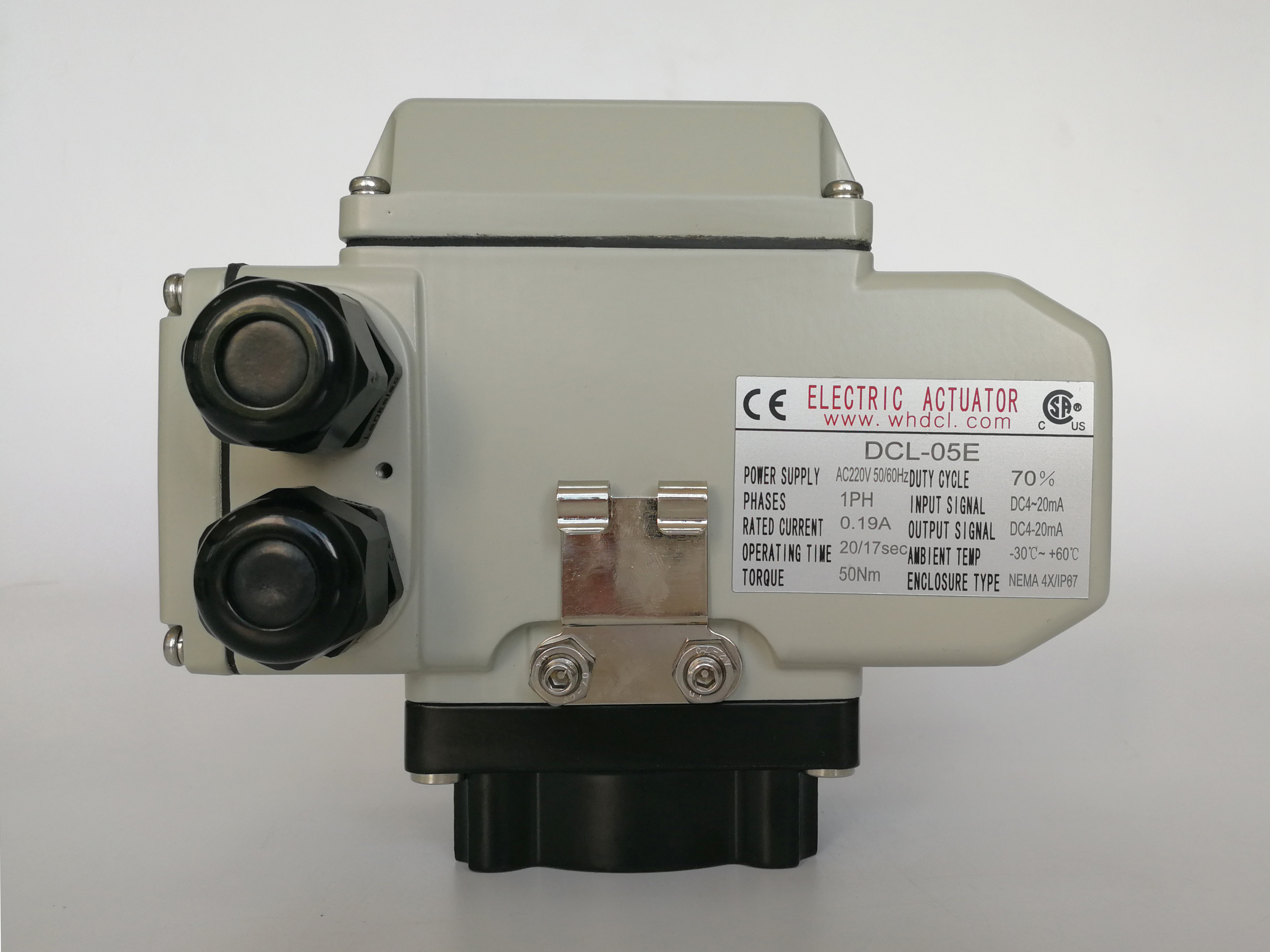

Modulating 20S 50Nm 90° CSA AC24V Quarter Turn Electric Actuator

High performance EMC smart electric actuator pasted EFT / ESD / surge impact testing

• Quarter turn with proportional to input control signal, mechanical limits
• Super mini smart programmable control pack with LED lights for problem self-checking
• Control pack is located in in the same cavity of actuator, no extra box needed
• Full potted control server to protect the electronics from vibration and moisture
• World leading anti-interference ability, control accuracy and sensitivity
• Multi input signal switching and self-calibrating
• High performance EMC with EFT, ESD and high voltage surge tested for control pack
• C3 level corrosion resistance with 1000 hours salt spray test
• Heavy duty motor with thermal overload protection
• Visual valve position indicator
• Standard ISO5211 multi-flange valve mounting
• CSA certificated complied to UL and CSA standard/ CE marked

The DCL modulating electric actuator features an integral design that combines the motor, control pack, and housing into a single compact unit. Unlike conventional actuators that require an additional external cavity to accommodate a positioning controller—resulting in bulky, unbalanced, and less aesthetic designs—DCL has developed a miniaturized multifunctional control pack comparable in size to the terminal block of an on-off actuator. This control pack is installed directly within the wiring cavity, fully replacing the terminal block while maintaining a clean, compact appearance.

The dead band (dead space) of the DCL smart electric actuator is adjustable, allowing users to tailor the actuator’s sensitivity to the input signal. A smaller dead band provides higher sensitivity, but higher sensitivity is not always optimal. When the input signal is vulnerable to external interference, a larger dead band effectively prevents frequent false starts, improving operational stability and significantly extending actuator service life. Conversely, when the control signal is clean and high positioning accuracy is required, a smaller dead band delivers more precise control.

Valve positioning accuracy is also influenced by gear backlash, particularly the machining precision of the worm gear set. To ensure consistent quality, DCL’s SQE team employs professional inspection equipment to rigorously test every gear supplied. In addition, multiple proprietary design features and strict assembly process controls are implemented to eliminate gear oscillation and minimize noise under varying load conditions. These measures have enabled DCL to set a benchmark for compact electric actuators in the Chinese market.

All DCL actuators have been rigorously tested and certified by CSA in accordance with UL and CSA standards. Across all series, the duty cycle exceeds 70%, ensuring reliable performance under demanding operating conditions. The integrated EPS self-calibration system virtually eliminates hunting and provides standard output position feedback for precise and stable control.
