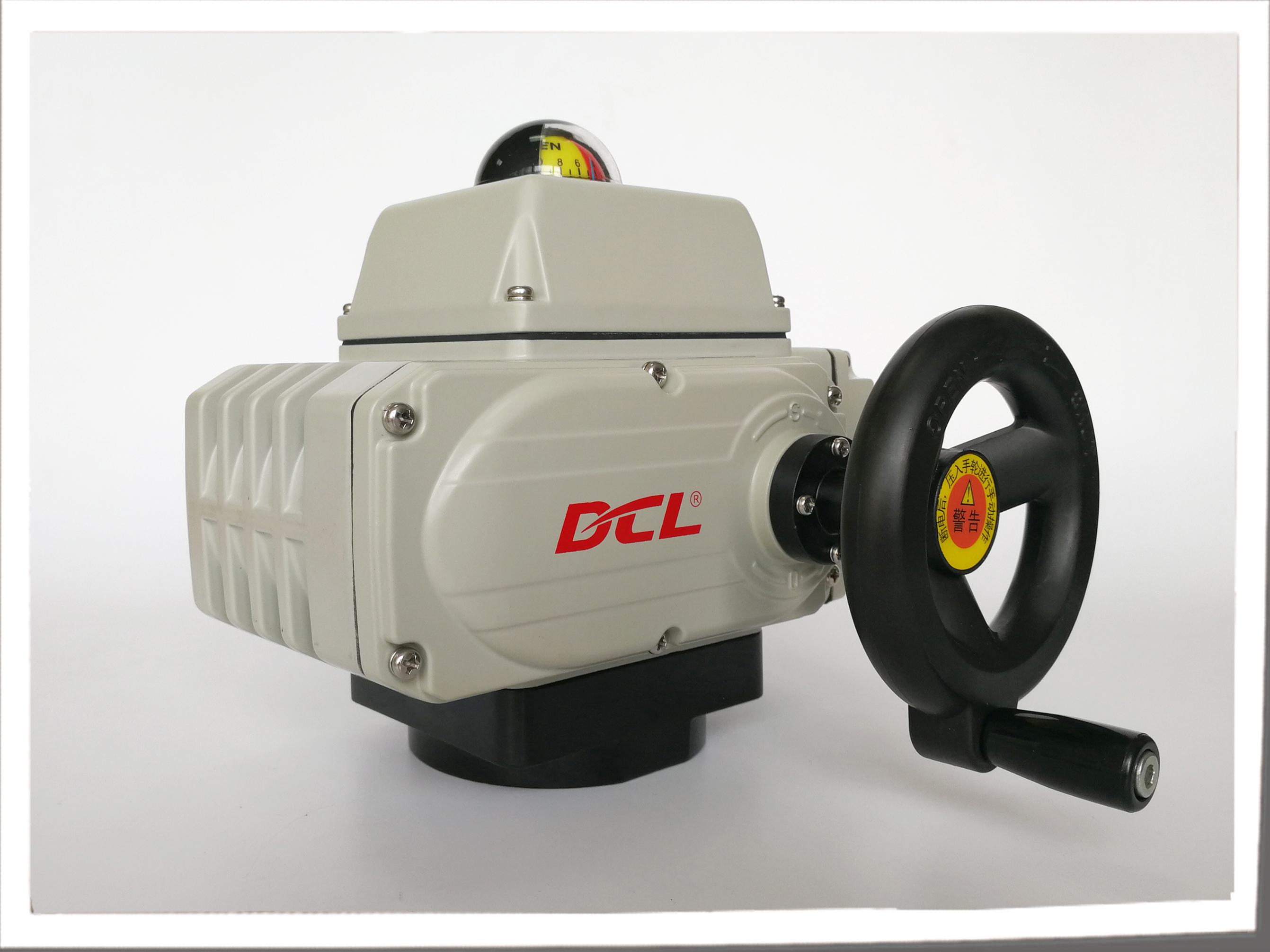

AC380V 400Nm Fail Safe Electric Actuator
Neem contact met mij op voor gratis monsters en coupons.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skypen: sales10@aixton.com
Als u zich zorgen maakt, bieden wij 24 uur per dag online hulp.
xProductdetails
| Type | Elektrische actuator | Functie | noodsituatiemacht van knoop |
|---|---|---|---|
| Standaardkoppel | 18 Nm tot 2500 Nm | Standaardtijd | 15S tot 75S |
| Beschermingscijfer | IP67 NEMA4/4X | Omgevingstemperatuur | -25 ℃ ~+55 ℃ / -13 ° F ~+131 ° F |
| Motorvermogen | 6W tot 140W | Naam | Elektrische actuator zonder storing |
| Markeren | AC380V fail safe electric actuator,400Nm torque electric actuator,industrial fail safe actuator |
||
Productomschrijving
Fail safe electric actuator with emergency power off button and handwheel
Description
DCL can add standard handwheel to its electric actuators, both for common type or explosion proof type. To ensure the safety of manual handling, an emergency power off button is also available to avoid mistake operation. The power off button is on the back of actuator and very easy to reach. Sometimes, we can not confirm the actuator is powered or not, we just press the button. Commonly the handwheel is disconnect states with worm gear, when press handwheel in, it connects to worm gear and can drive the output drive and valve.
O-ring for power off button keeps whole actuator IP67 weather proof, protect against dust and water. 100% underwater sealing test during production to make sure every actuator can meet IP67 sealing grade.
Over torque protector is optional only if accurate output torque is needed. PTC electronic heating component is also used as thermostatically controlled anti-condensation heater that will protect actuator against damage from condensation.
| Actuator Type | Standard Time/Torque | Optional Time/Torque | Turning Angle(Max.range) | Total Weight | Power Supply | Selected Control Circuit |
|---|---|---|---|---|---|---|
| DCL-02 | 15S/18Nm | 7S/9Nm 60S/18Nm | 0~90°Adjustable | 1.2Kg | DC24V/AC24V AV110V/AC220V | Types of A/B/E/G |
| DCL-05 | 20S/50Nm | 4S/20Nm 10S/30Nm 60S/50Nm | 0~360°Adjustable | 2.5Kg | DC24V/AC24V AV110V/AC220V/AC380V | Types of A/B/C/D/E/F/G/H |
| DCL-10 | 30S/100Nm | 15S/50Nm 60S/100Nm | 0~360°Adjustable | 4.5Kg | DC24V/AC24V AV110V/AC220V/AC380V | Types of A/B/C/D/E/F/G/H |
| DCL-20 | 30S/200Nm | 15S/100Nm 60S/200Nm | 0~90°Adjustable | 9Kg | DC24V/AC24V AV110V/AC220V/AC380V | Types of A/B/C/D/E/F/G/H |
| DCL-40 | 30S/400Nm | 15S/200Nm 60S/400Nm | 9.5Kg | |||
| DCL-60 | 45S/600Nm | 10Kg | ||||
| DCL-100 | 30S/1000Nm | 15S/500Nm | 0~90°Adjustable | 19Kg | AV110V/AC220V/AC380V | Types of A/B/C/D/E/F/H |
| DCL-160 | 48S/1600Nm | 19.5Kg | ||||
| DCL-250 | 75S/2500Nm | 20Kg | ||||
| Performance Parameters List of Adjusting type(Type E) | ||||||
| DCL-MZZ | 18Nm | 3r | 1.2Kg | DC24V | Type MZZ | |
| DCL-10GE | 30S/0~100Nm | 15S/0~100Nm | 0~90°Adjustable | 4.5Kg | DC24V±10% | Type GE |
| DCL-40GE | 30S/100~600Nm | 15S/100~400Nm | 9.5Kg | |||
Features
- 1/4 turn operation with mechanical limits
- Over torque protection by torque test function of smart full potted controller
- Integral design of Motor/control box/housing to make whole actuator compact
- Local button to cut off power when emergency issue happens for manual operation
- Hard high pressure die cast aluminum housing with weather proof IP67 and NEMA 4X
- Two auxiliary limit switches to confirm valve position
- Visual valve position indicator/flat or convex
- De-clutchable handwheel is safe, reliable, labor-saving and small
- Non ventilation heavy duty motor with overheat protection
- Self-locking all metal gear drive, no additional brake required
- Standard ISO5211 direct mounting
- Certified by CSA per UL standard/CE marked
Specification:
| Type: | Electric Actuator |
| Standard Torque: | 18Nm To 2500Nm |
| Power Supply: | 24VAC/110VAV/220VAC/380VAC/24VDC |
| Protection Grade: | IP67 NEMA4/4X |
| Ambient Temperature: | -25℃~+55℃ / -13°F~+131°F |
| Name: | Fail Safe Electric Actuator |
| Feature: | Emergency Power Off Button |
| Standard Time: | 15S To 75S |
| Installation Angle: | 360° |
| Total Weight: | 1.2KG To 20KG |
| Motor Power: | 6W To 140W |
